The LD-520 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features LCD display, IHB detection and optional IMT, 1*90 memory, and last-three-average value support to support clearer readings and easier operation. With DC or 4*AA batteries, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.
The LD-521 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features LCD display with convenient reading angle, Inflation Measuring Technology (IMT), WHO/IHB functions, 1*90 memory, and cost-effective design and optional talking to support clearer readings and easier operation. With Type-C or 4*AAA batteries, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.
The LD-526 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features LCD display with convenient reading angle, Inflation Measuring Technology (IMT), WHO/IHB functions, 2*90 memories, and movement error and cuff check indicators to support clearer readings and easier operation. With Type-C or 4*AAA batteries, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.
The LD-528 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features LED full screen display and ultra-thin design, Inflation Measuring Technology (IMT), WHO/IHB functions, 2*100/180 memories, and movement error, cuff check and optional talking to support clearer readings and easier operation. With Type-C or 4*AAA batteries, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.
The LD-537 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features ultra-large LCD display with three-color backlight, Inflation Measuring Technology (IMT), WHO/IHB functions, 2*90 memories, and optional talking and last-three-average value to support clearer readings and easier operation. With DC or 4*AA batteries, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.
The LD-562 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features large LCD display and convenient reading angle, Inflation Measuring Technology (IMT), WHO/IHB functions, 2*90 memories, and optional talking to support clearer readings and easier operation. With Type-C or 4*AAA batteries, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.
The LD-572 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features LCD display, IHB detection, 1*90 memory, and last-three-average value support to support clearer readings and easier operation. With 4*AA batteries, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.
The LD-575 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features LCD display, WHO/IHB functions and optional IMT, 1*90 memory, and Bluetooth or NB-IoT option to support clearer readings and easier operation. With DC or 4*AA batteries, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.
The LD-576 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features ultra-large LCD display, WHO/IHB functions and optional IMT, 2*90 memories, and talking and backlight options to support clearer readings and easier operation. With DC or 4*AA batteries, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.
The LD-579 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features ultra-large LCD display, WHO/IHB functions and optional IMT, 2*90 memories, and optional talking and last-three-average value to support clearer readings and easier operation. With DC or 4*AA batteries, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.
The LD-581 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features LCD display with convenient reading angle, Inflation Measuring Technology (IMT), WHO/IHB functions, 2*90 memories, and movement error and cuff check indicators to support clearer readings and easier operation. With Type-C or 4*AAA batteries, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.
The LD-582 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features ultra-large LCD display with temperature display, optional IMT, WHO/IHB functions, 2*60 memories, and alarm clock, cuff storage box and standing option to support clearer readings and easier operation. With DC or 4*AA batteries, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.
The LD-583 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features large negative LCD with blue backlight, Inflation Measuring Technology (IMT), WHO/IHB functions, 2*90 memories, and Bluetooth/Wi-Fi/NB-IoT option to support clearer readings and easier operation. With Micro-USB built-in lithium battery, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.
The LD-587 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features ultra-large LED display and ultra-thin design, Inflation Measuring Technology (IMT), WHO/IHB functions, 2*100/180 memories, and movement error, cuff check and optional talking to support clearer readings and easier operation. With Type-C or 4*AAA batteries, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.
The LD-588 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features LCD display, WHO classification and IHB detection, 2*60 memories, and last-three-average value support to support clearer readings and easier operation. With DC or 4*AA batteries, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.
The LD-596 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features ultra-large LCD display and convenient reading angle, Inflation Measuring Technology (IMT), WHO/IHB functions, 2*90 memories, and movement error and cuff check indicators to support clearer readings and easier operation. With Type-C or 4*AAA batteries, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.

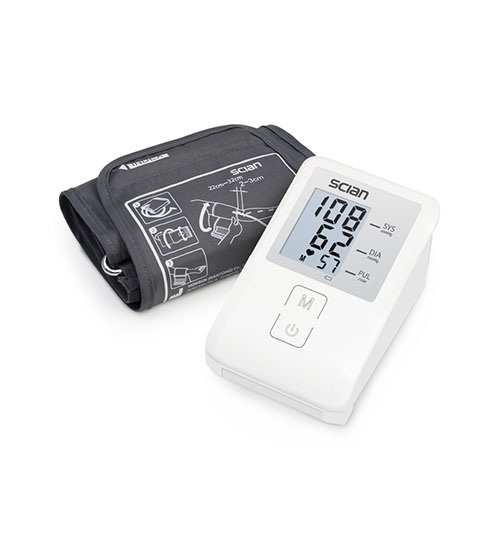

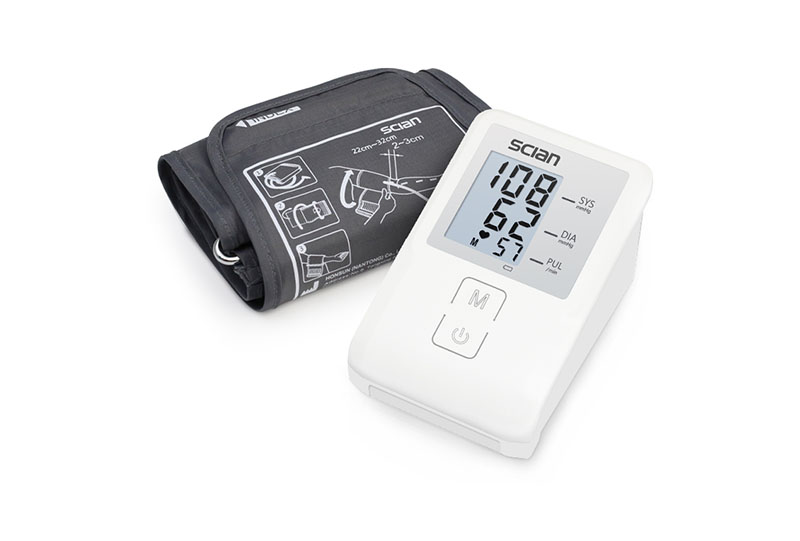

LD-520 Upper Arm Type
+ Cost-effective product
+ IHB(Irregular Heat-Beat)detector
+ Last 3 average value
Inflation Measuring Technology(Optional)
| Memories | Dimension(mm) | Power |
| 1*90 | 110*80*52(LCD:35*45) | DC/4*AA batteries |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
110*90*165 | 470*240*355 | 20 | 9/8 |

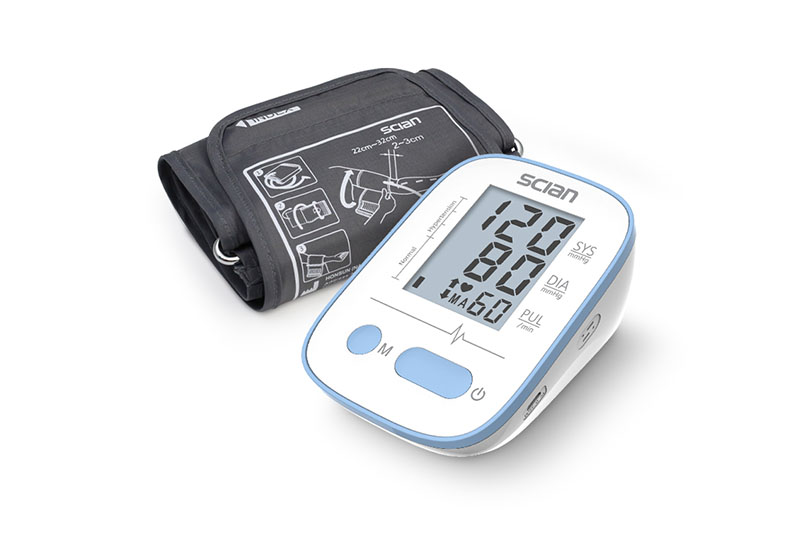

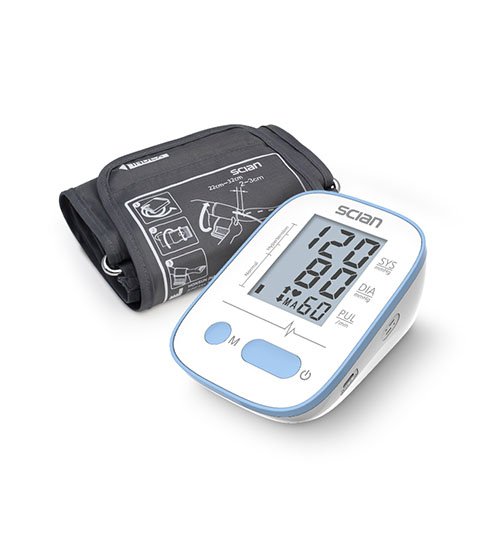

LD-521 Upper Arm Type
+ Cost-effective product
+ Convenient reading angle
+ WHO(blood pressure classification indication)
+IHB(Irregular Heat-Beat)detector
Inflation Measuring Technology(IMT)
| Memories | Dimension(mm) | Power | Universal cuff |
| 1*90 | 87*116*49(LCD:42.5*52.5) | Type-C/4*AAA batteries | 22-42cm(Optional) |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
110*80*165 | 420*240*355 | 20 | 9/8 |

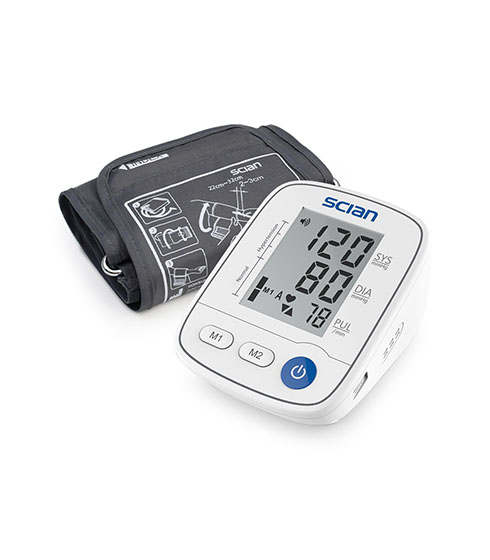

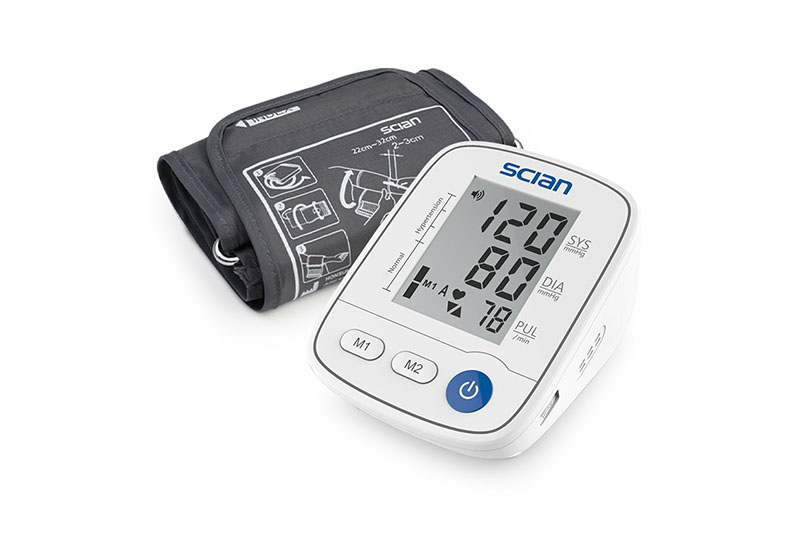

LD-526 Upper Arm Type
+ Cost-effective product
+ Convenient reading angle
+ Movement errorindicator
+ Cuff check indicator
Inflation Measuring Technology(IMT)
| Memories | Dimension(mm) | Power | Universal cuff |
| 2*90 | 127*96*69 (LCD:46*62) | Type-C/4*AAA batteries | 22-42cm(Optional) |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
110*90*165 | 470*240*355 | 20 | 9/8 |

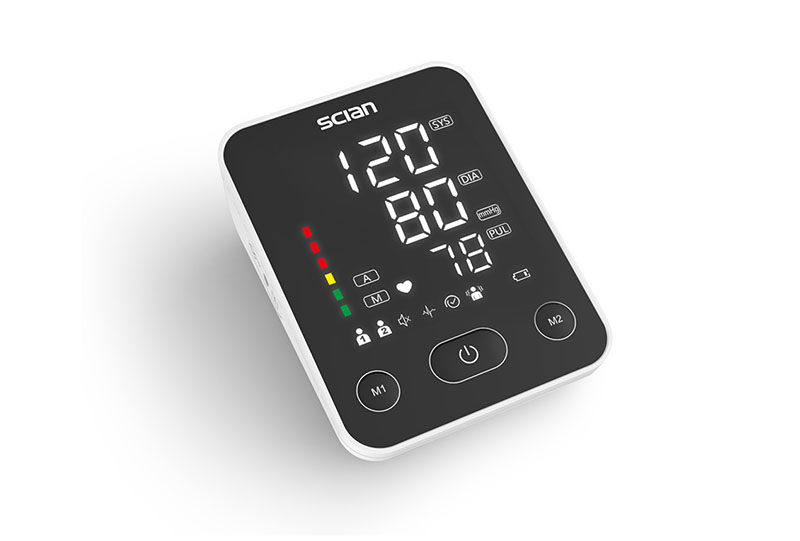

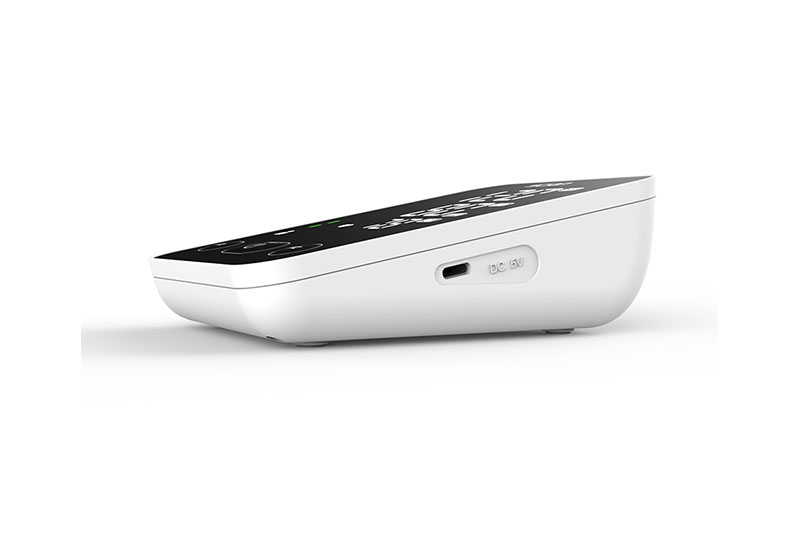

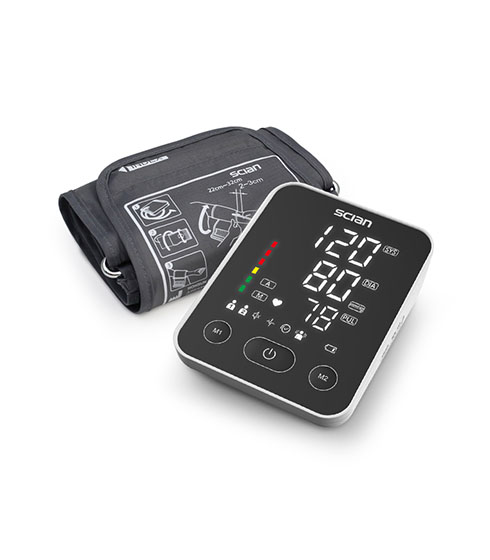

LD-528 Upper Arm Type
+ LED full screen design
+ Ultra-thin design
+ Movement error indicator
+ Cuff check indicator
Inflation Measuring Technology(IMT)
| Memories | Dimension(mm) | Power | Universal cuff |
| 2*100/180 | 106*140*48(LED: 101*106) | Type-C/4*AAA batteries | 22-42cm(Optional) |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
110*80*165 | 420*240*355 | 20 | 9/8 |

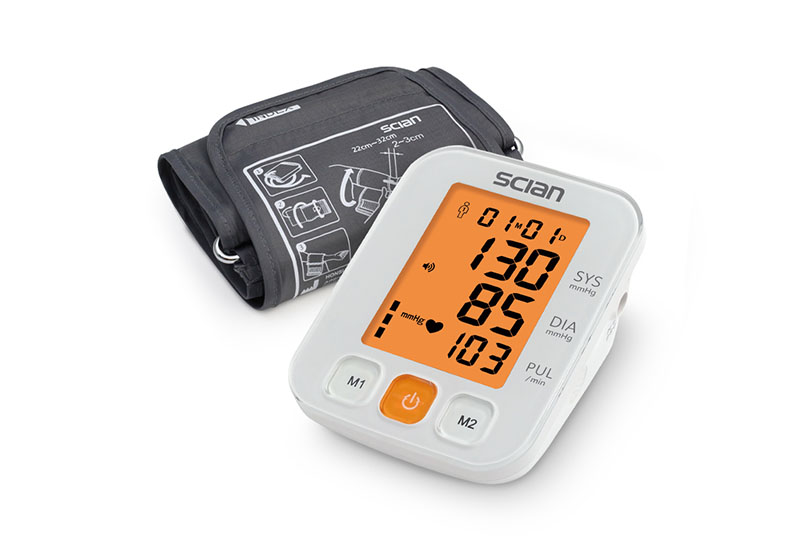

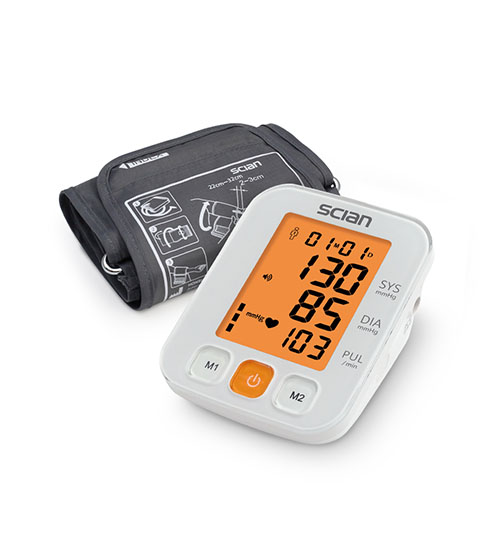

LD-537 Upper Arm Type
+ Ultra-large LCD display design
+ 3 colors backlight
+ WHO(blood pressure classification indication)
+IHB(Irregular Heat-Beat)detector
Inflation Measuring Technology(IMT)
| Memories | Dimension(mm) | Power | Universal cuff |
| 2*90 | 105*120*55(LCD:62*80) | DC/4*AA batteries | 22-42cm(Optional) |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
125*90*185 | 470*270*395 | 20 | 12/11 |

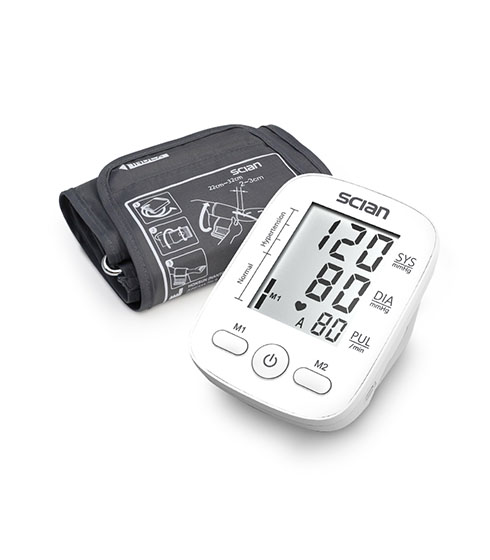

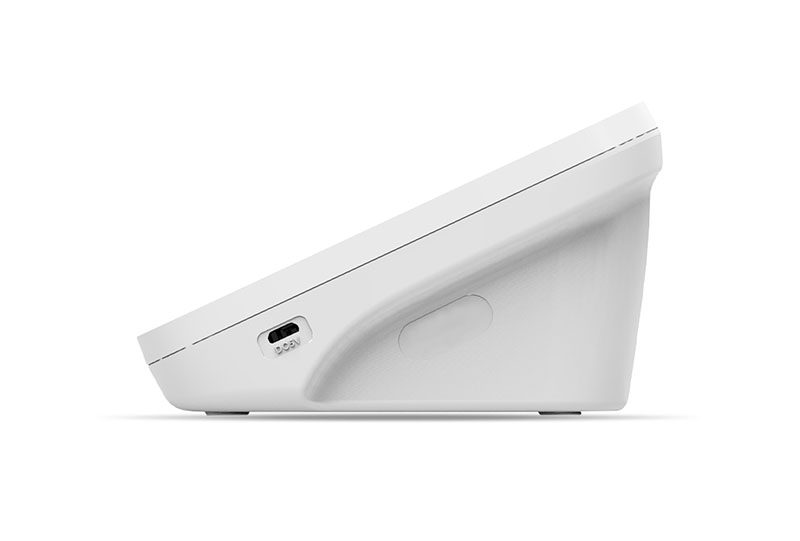

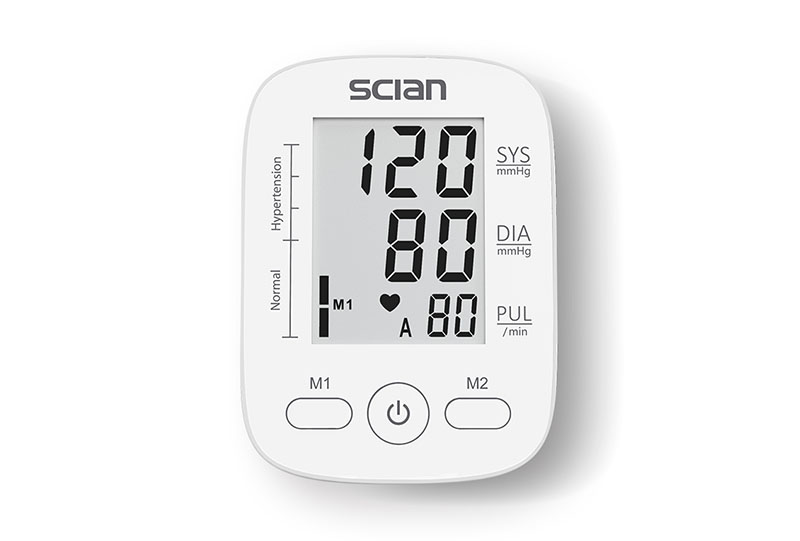

LD-562 Upper Arm Type
+ Large LCD display design
+ Convenient reading angle
+ WHO(blood pressure classification indication)
+ IHB(Irregular Heat-Beat)detector
Inflation Measuring Technology(IMT)
| Memories | Dimension(mm) | Power | Universal cuff |
| 2*90 | 127*100*77 (LCD:54*71.5) | Type-C/4*AAA batteries | 22-42cm(Optional) |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
110*90*165 | 470*240*355 | 20 | 9/8 |

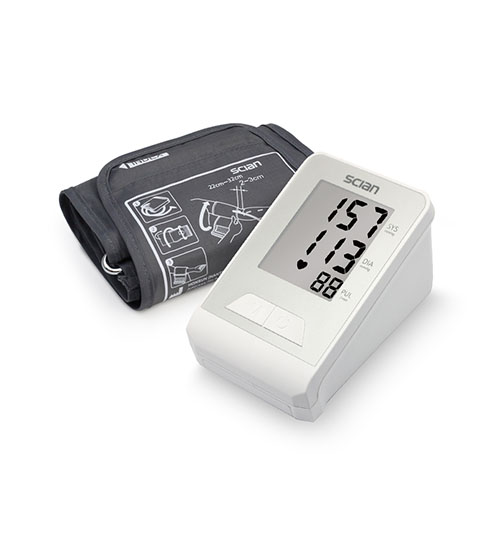

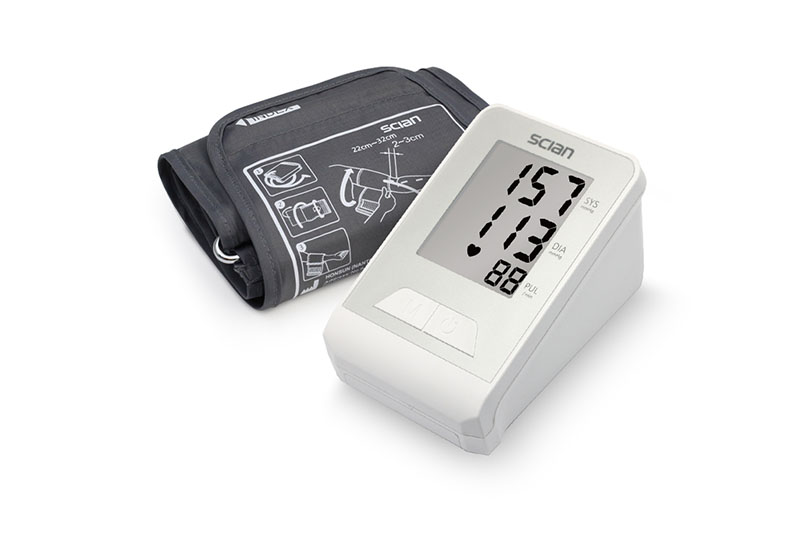

LD-572 Upper Arm Type
+ Cost-effective product
+ IHB(Irregular Heat-Beat)detector
+ Last 3 average value
| Memories | Dimension(mm) | Power |
| 1*90 | 110*80*52(LCD:50*60) | 4*AA batteries |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
110*90*165 | 470*240*355 | 20 | 9/8 |

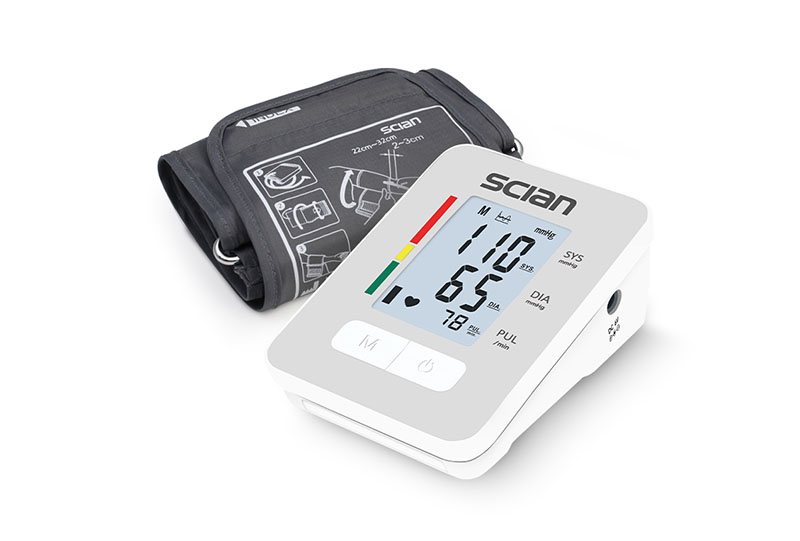

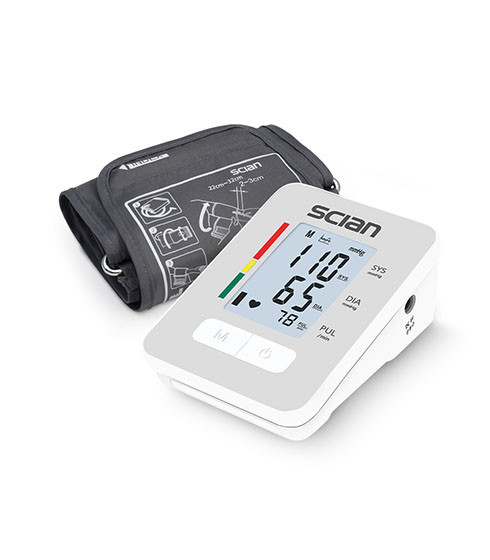

LD-575 Upper Arm Type
+ WHO(blood pressure classification indication)
+ IHB(Irregular Heat-Beat)detector
+ Last 3 average value
+ Bluetooth/NB-loT(Optional)
Inflation Measuring Technology(Optional)
| Memories | Dimension(mm) | Power |
| 1*90 | 134*98*57 (LCD:46*62) | DC/4*AA batteries |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
110*90*165 | 470*240*355 | 20 | 9/8 |

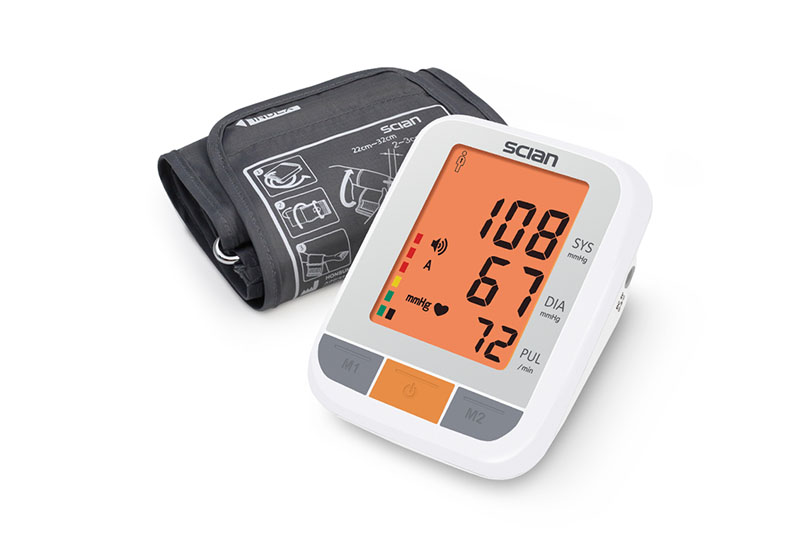

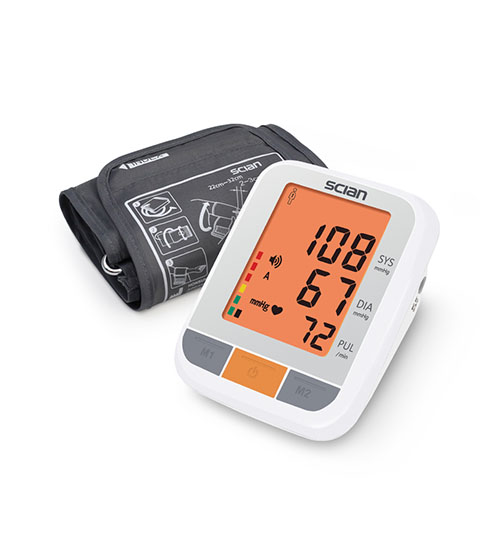

LD-576 Upper Arm Type
+ Ultra-large LCD display design
+ WHO(blood pressure classification indication)
+ IHB(Irregular Heat-Beat)detector
+ Last 3 average value
Inflation Measuring Technology(Optional)
| Memories | Dimension(mm) | Power |
| 2*90 | 105*120*55(LCD:66*88) | DC/4*AA batteries |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
110*90*165 | 470*240*355 | 20 | 11/10 |

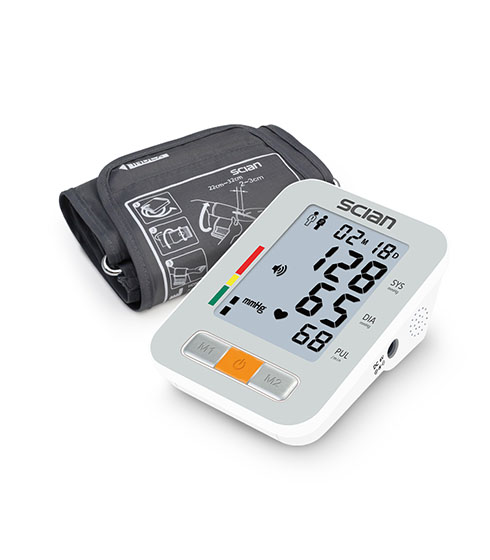

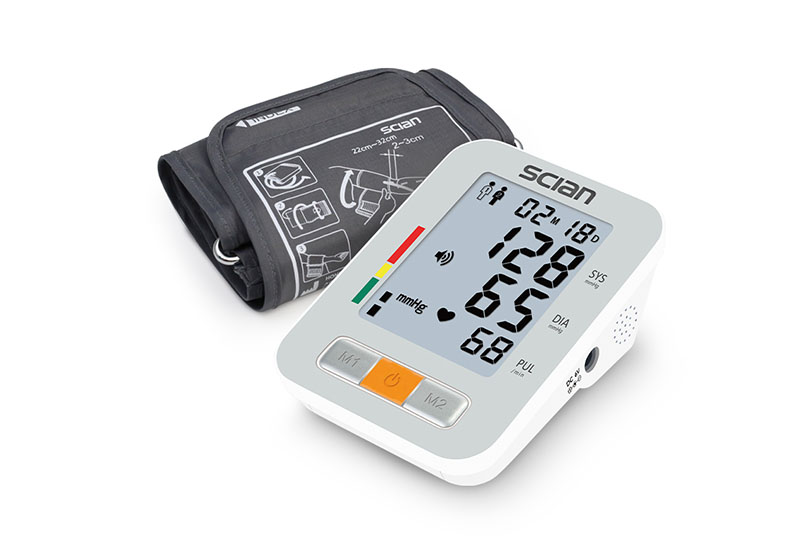

LD-579 Upper Arm Type
+ Ultra-large LCD display design
+ WHO(blood pressure classification indication)
+ IHB(Irregular Heat-Beat)detector
+ Last 3 average value
Inflation Measuring Technology(Optional)
| Memories | Dimension(mm) | Power |
| 2*90 | 105*120*55(LCD:63*82) | DC/4*AA batteries |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
110*90*165 | 470*240*355 | 20 | 9/8 |

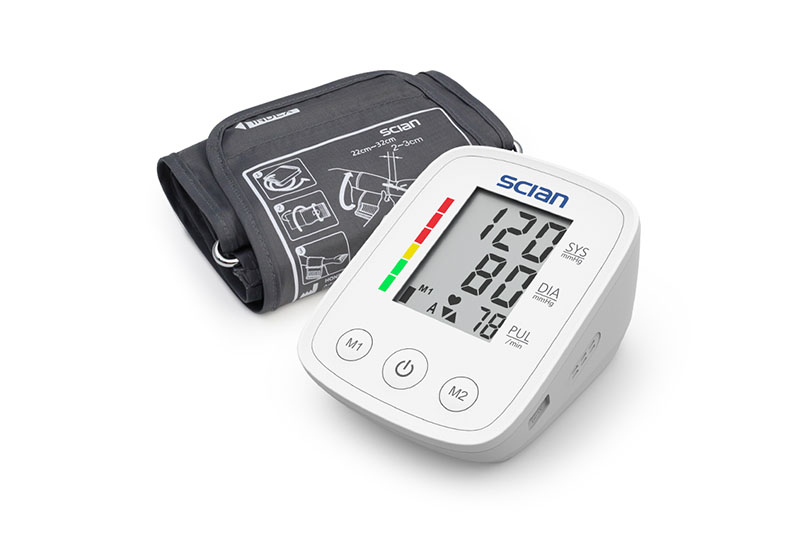

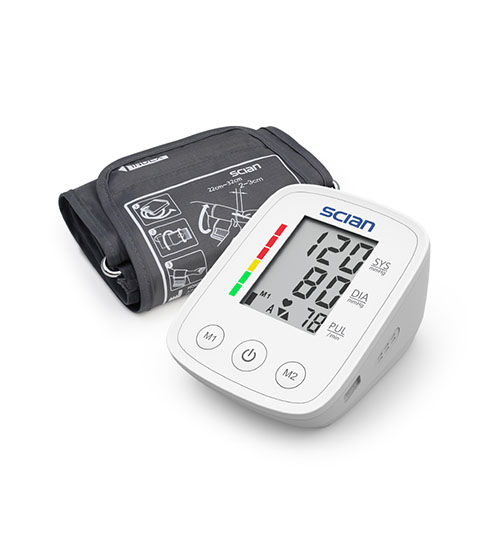

LD-581 Upper Arm Type
+ Cost-effective product
+ Convenient reading angle
+ Movement error indicator
+ Cuff check indicator
Inflation Measuring Technology(IMT)
| Memories | Dimension(mm) | Power | Universal cuff |
| 2*90 | 127*96*69 (LCD:46*62) | Type-C/4*AAA batteries | 22-42cm(Optional) |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
110*90*165 | 470*240*355 | 20 | 9/8 |

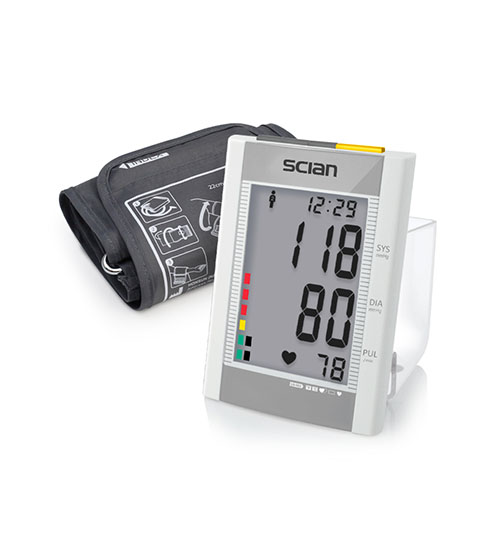

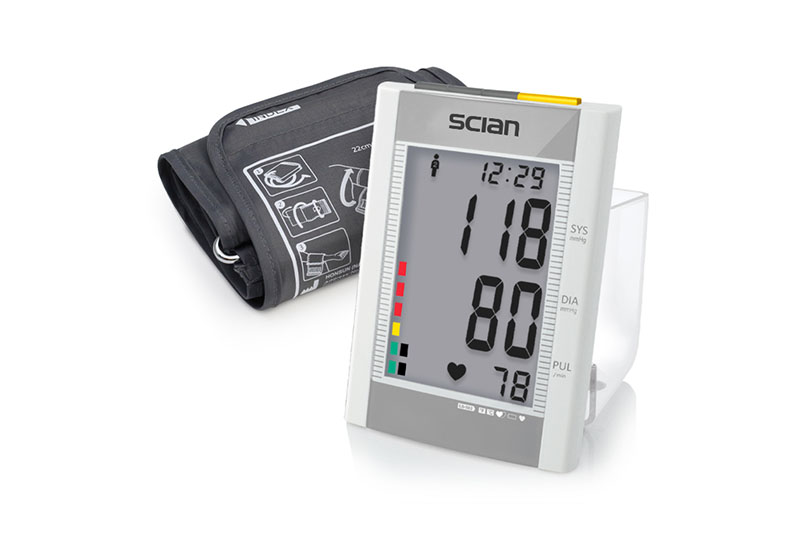

LD-582 Upper Arm Type
+ Ultra-large LCD display design
+ Temperature display
+ Alarm clock function
+ Cuff storage box
+ Standing type(optional)
Inflation Measuring Technology(Optional)
| Memories | Dimension(mm) | Power |
| 2*60 | 158*120*127(LCD:115*79.3) | DC/4*AA batteries |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
125*120*185 | 620*270*395 | 20 | 15/14 |

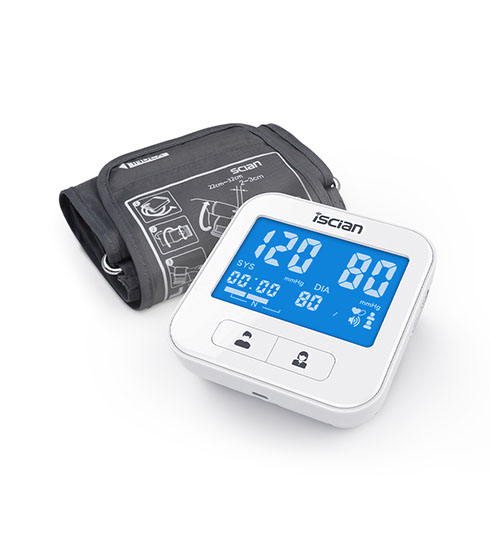

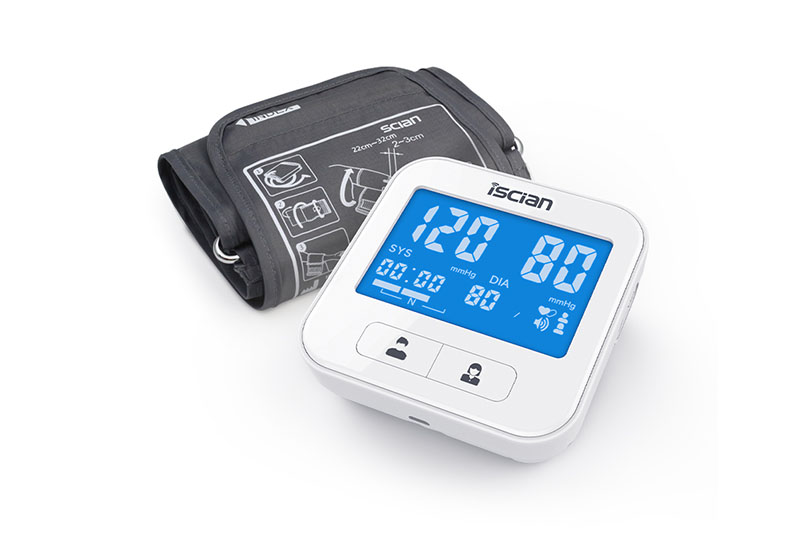

LD-583 Upper Arm Type
+ Large negative display LCD
+ Built-in lithium battery
+ Bluetooth/Wi-Fi/NB-IoT(Optional)
+ WHO(blood pressure classification indication)
+ IHB(Irregular Heat-Beat)detector
Inflation Measuring Technology(IMT)
| Memories | Dimension(mm) | Power | Universal cuff |
| 2*90 | 106*106*47(LCD:81*54) | Micro-USB/Built-in lithium battery | 22-42cm(Optional) |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
110*90*165 | 470*240*355 | 20 | 9/8 |

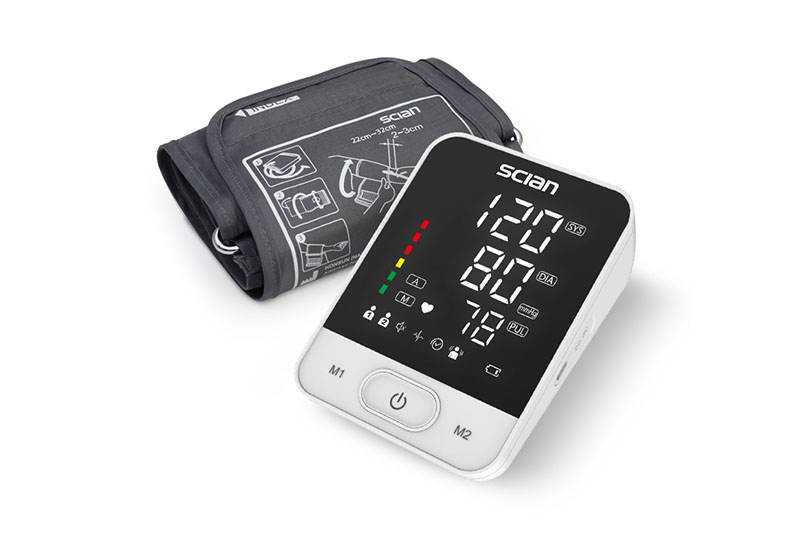

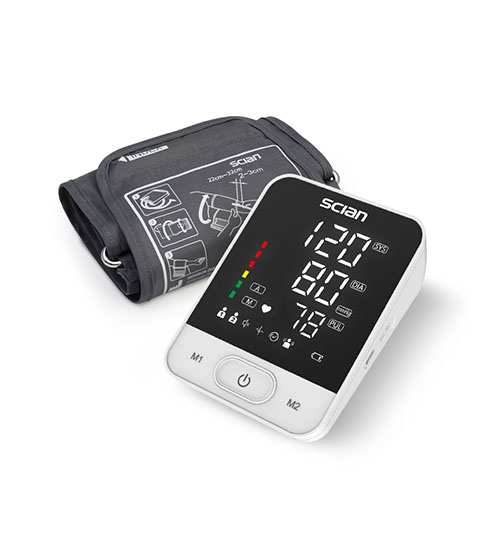

LD-587 Upper Arm Type
+ Ultra-large LED display design
+ Ultra-thin design
+ Movement error indicator
+ Cuff check indicator
Inflation Measuring Technology(IMT)
| Memories | Dimension(mm) | Power | Universal cuff |
| 2*100/180 | 106*140*48(LED: 101*106) | Type-C/4*AAA batteries | 22-42cm(Optional) |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
110*80*165 | 420*240*355 | 20 | 9/8 |

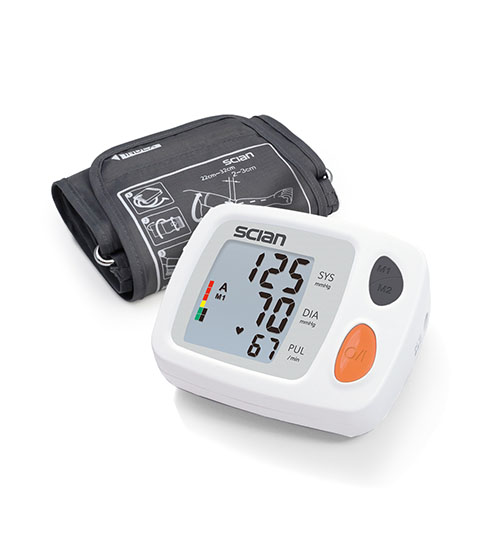

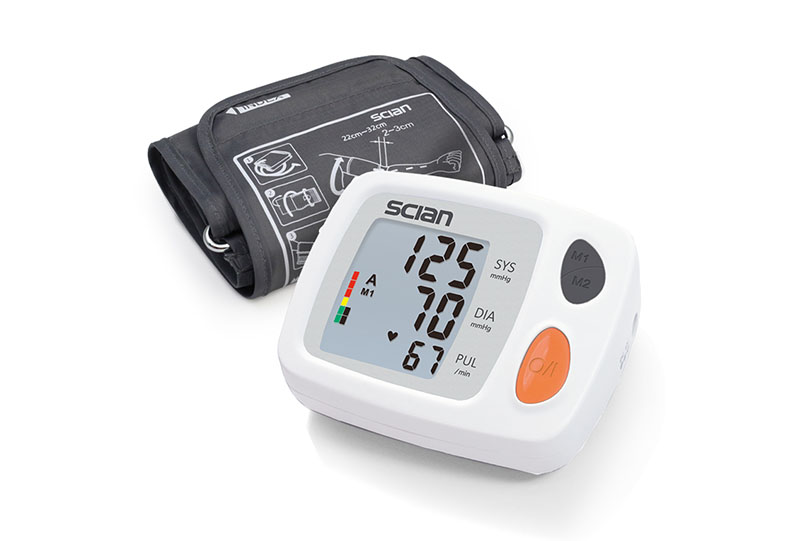

LD-588 Upper Arm Type
+ LCD display design
+ WHO(blood pressure classification indication)
+ IHB(Irregular Heat-Beat)detector
+Last 3 average value
| Memories | Dimension(mm) | Power |
| 2*60 | 125*100*50 (LCD:55*60) | DC/4*AA batteries |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
110*90*165 | 470*240*355 | 20 | 9/8 |

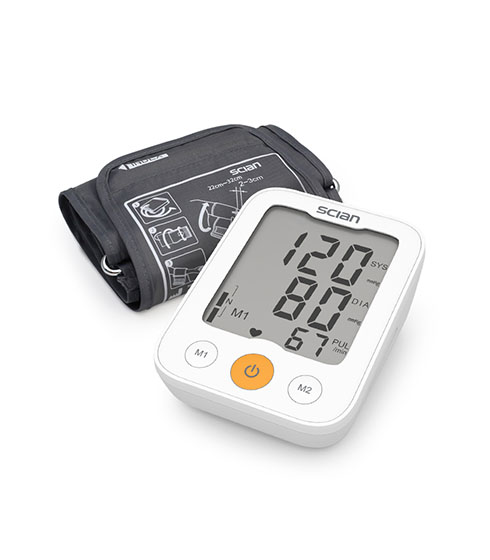

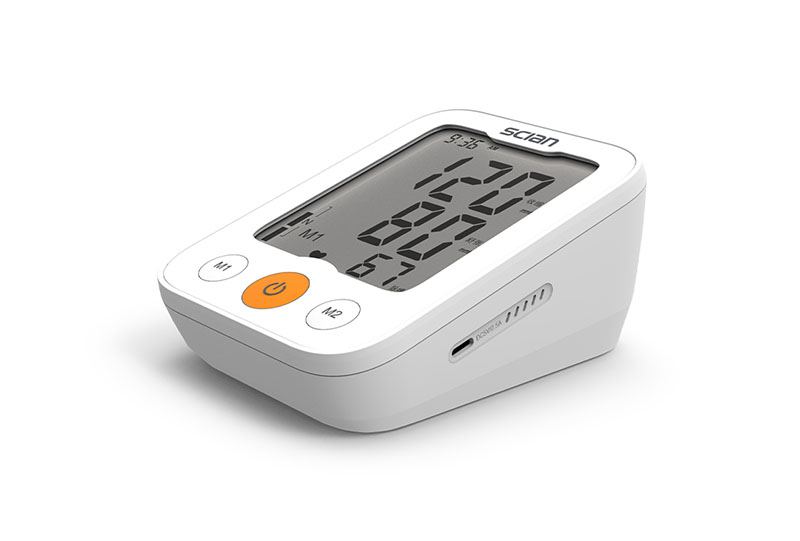

LD-596 Upper Arm Type
+ Ultra-large LCD display design
+ Convenient reading angle
+ Movement error indicator
+ Cuff check indicator
Inflation Measuring Technology(IMT)
| Memories | Dimension(mm) | Power | Universal cuff |
| 2*90 | 110*145*69(LCD:87*99) | Type-C/4*AAA batteries | 22-42cm(Optional) |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
125*90*185 | 470*270*395 | 20 | 11/10 |
Designed for convenient home blood pressure monitoring, SCIAN upper arm blood pressure monitors combine simple operation, clear readings, and practical memory functions for everyday use.
Intelligent Inflation
Automatically adjusts cuff inflation during measurement to provide a more comfortable monitoring experience.
Large Backlit LCD Display
The clear digital screen makes systolic pressure, diastolic pressure, and pulse readings easy to view, including for elderly users.
Dual-User Memory
Stores measurement records for two users, making it easier to track blood pressure trends over time.
Irregular Heartbeat Detection
Provides an indication when an irregular heartbeat is detected during blood pressure measurement.
One-Button Measurement
Simple one-touch operation allows users to start blood pressure measurement quickly at home.
USB & Battery Power Options
Supports both USB power and battery operation for flexible use at home or while traveling.
An upper arm blood pressure monitor works by inflating a cuff around the upper arm to temporarily compress the brachial artery. As the cuff slowly deflates, the built-in pressure sensor detects oscillations created by blood flowing through the artery. The device analyzes these signals using the oscillometric method to estimate systolic pressure, diastolic pressure, and pulse rate.
Systolic pressure represents the pressure in the arteries when the heart contracts, while diastolic pressure reflects the pressure when the heart relaxes between beats.

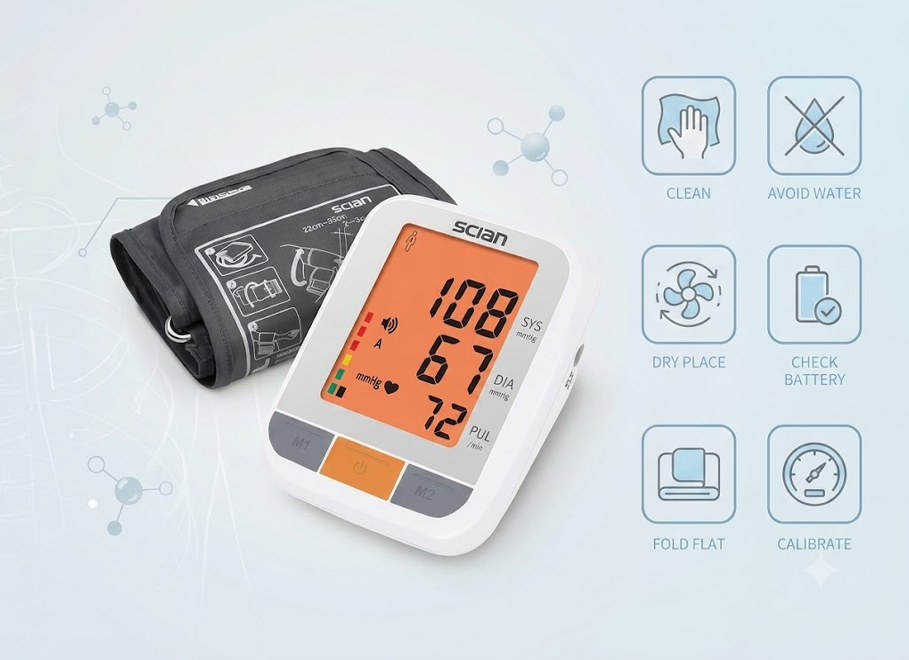

Keep the cuff clean – Wipe the cuff gently with a soft, slightly damp cloth and allow it to air dry completely. Do not immerse the cuff in water.
Clean the monitor carefully – Use a soft, dry cloth to wipe the monitor housing. Keep liquids away from buttons, ports, and openings.
Store it properly – Keep the blood pressure monitor in a cool, dry place away from direct sunlight, excessive heat, moisture, and dust.
Check before use – Inspect the cuff, tubing, batteries, and connections regularly to make sure the device is ready for measurement.
SCIAN offers multiple upper arm blood pressure monitor configurations for home users, healthcare retailers, distributors, and connected monitoring applications. Choose a model based on the features required for your target market.
Models with straightforward operation, clear LCD displays, memory storage, and standard cuff options are suitable for everyday home monitoring.
Select a dual-user memory model when two family members need to store and review measurement records separately.
Large LCD, backlight, convenient viewing angles, talking functions, and clear indicators can improve usability for selected user groups.
Selected models support Bluetooth, Wi-Fi, or NB-IoT configurations for applications that require wireless data transmission.
Check the supported cuff size and optional universal cuff specifications when choosing a model for different end-user groups.
Compare memory capacity, display type, power supply, optional connectivity, packaging, and target price positioning when building a retail range.
Feature availability varies by model and configuration. Confirm the required functions, cuff size, connectivity, and power options before selecting a product.
Upper arm and wrist blood pressure monitors both provide convenient digital measurement, but the measurement position, cuff design, and operating technique are different.
The cuff is positioned around the upper arm and measurements are taken from the brachial artery area. Upper arm models are widely used for routine home monitoring.
Upper-arm cuff placement
Suitable for regular home monitoring
Multiple display and memory options
Selected models offer wireless connectivity
Wrist monitors use a compact cuff positioned around the wrist. Proper wrist position during measurement is especially important for obtaining consistent readings.
Compact cuff around the wrist
Portable and easy to store
Requires careful wrist positioning
Useful when compact size is a priority
Which type should you choose? The appropriate device depends on the intended user, cuff fit, required functions, and preferred measurement position. Always follow the operating instructions supplied with the selected model.
Common questions about cuff fit, measurement technique, memory, connectivity, and everyday use.
Choose a cuff that matches the user's upper-arm circumference. Some SCIAN models support optional universal cuffs, including selected 22–42 cm configurations. Check the specification of the individual model before ordering.
Place the cuff on the bare upper arm according to the cuff markings and the user manual. Keep the arm supported and relaxed during measurement.
Yes. Selected SCIAN upper arm blood pressure monitors provide dual-user memory so two users can store measurement records separately.
IHB refers to an irregular heartbeat detection function. On supported models, the monitor can display an indication when an irregular heartbeat pattern is detected during measurement.
IMT is available on selected SCIAN models and is designed to obtain measurement information during the inflation process. Availability depends on the specific model and configuration.
Blood pressure can change with posture, movement, talking, recent activity, and measurement conditions. For more consistent tracking, measure under similar conditions and follow the instructions provided with the device.
Wireless features are available on selected configurations. For example, some models provide optional Bluetooth, Wi-Fi, or NB-IoT functions. Confirm connectivity requirements when choosing a model.
No. Power options vary by model and may include AA or AAA batteries, DC input, Type-C, Micro-USB, or a built-in lithium battery. Review the individual product specification before ordering.
