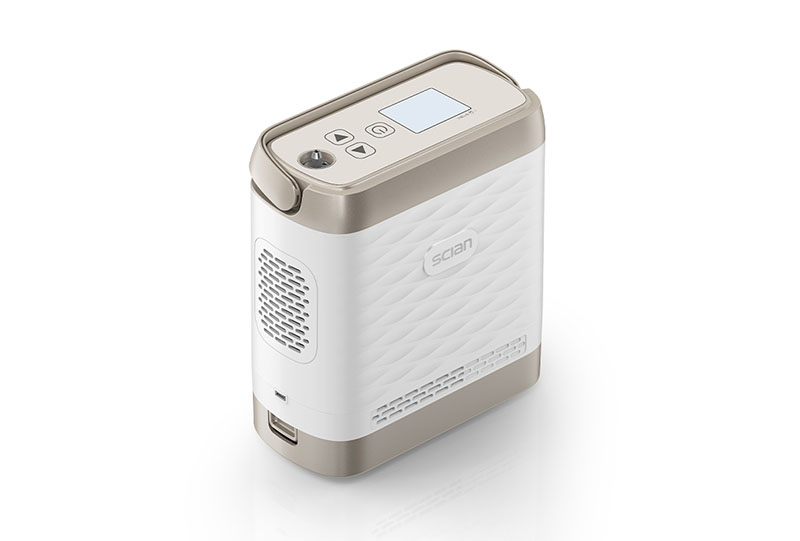

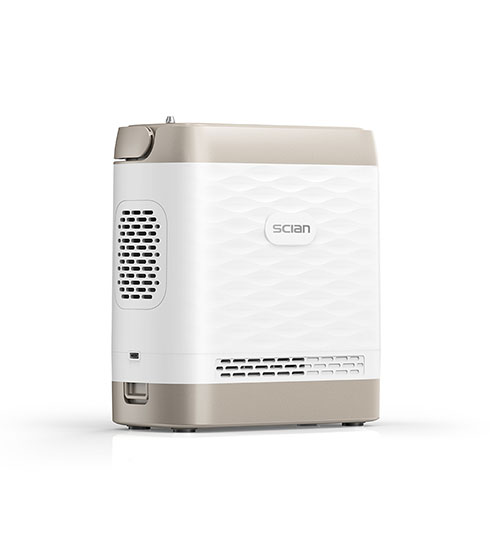

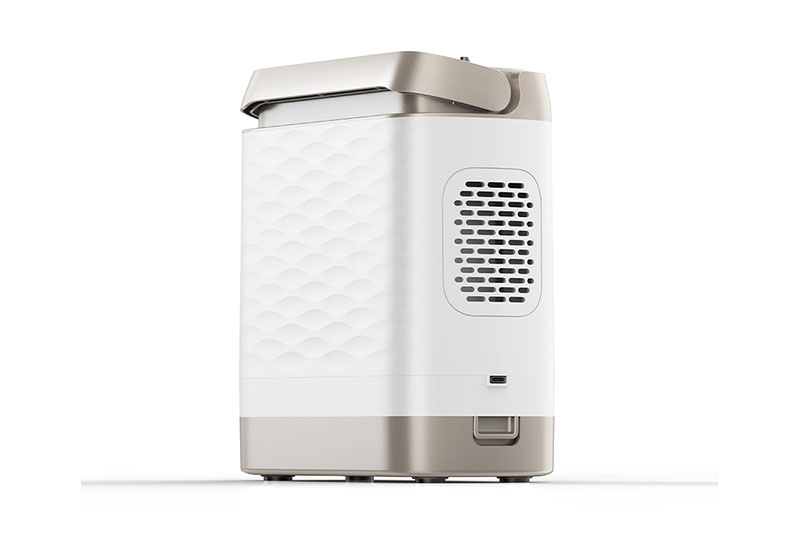

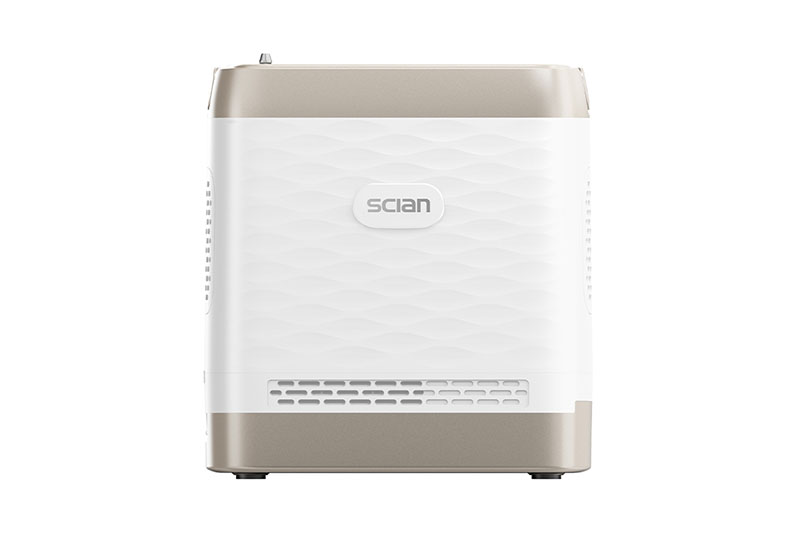

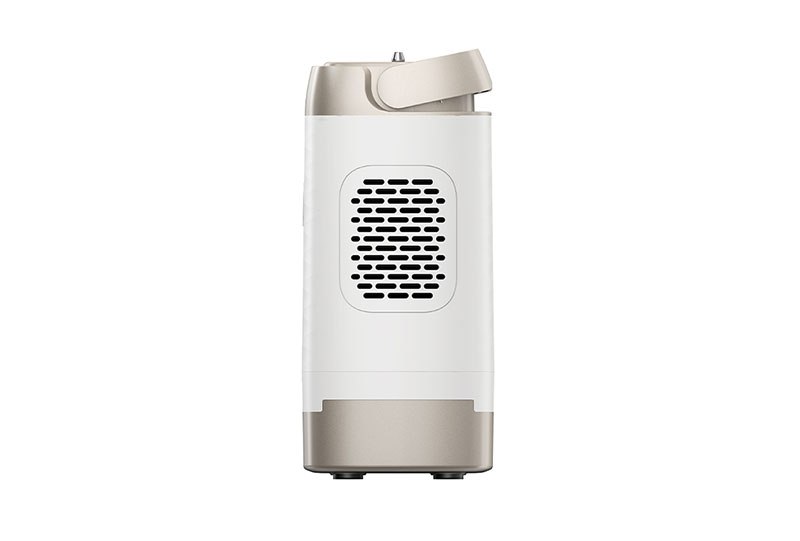

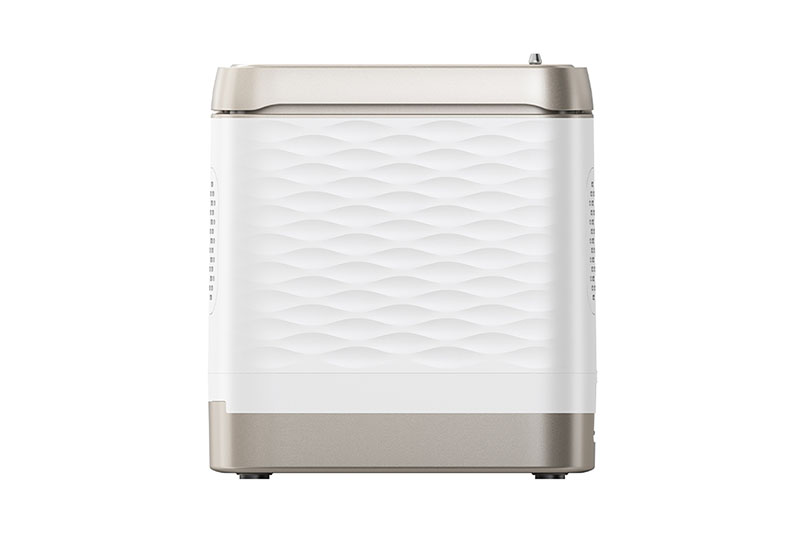

The Ares-6A portable oxygen concentrator is built for mobile homecare oxygen support and outdoor use. It provides 1-6 pulse flow settings with a 0.2-1.2 L/min range and 93% +/-3% oxygen concentration, helping users choose a suitable output level for different daily scenarios. With approximately 2.2 kg net weight, rechargeable battery operation for about 80-180 minutes, and a sound level below 60 dB, this compact unit is practical for distributors seeking lightweight, travel-friendly oxygen concentrator models.
Technical Features
| Gear & Flow Rate | Oxygen Concentration | Dimensions (L×W×H) | Net Weight | AC Power | Battery Power Supply | Battery Life | Battery Charging Time | Sound Level | Equip Classification & Type |
| Pulse 1~6 gear (0.2L-1.2L/min) | 93%±3% | 208*96*195（mm） | Approx 2.2kg (including the battery) | 100-240V~50/60Hz | DC 14.6V | 80-180min (power varies from settings 1-6) | about 2 hours | ≤60dB | Class II, type BF |

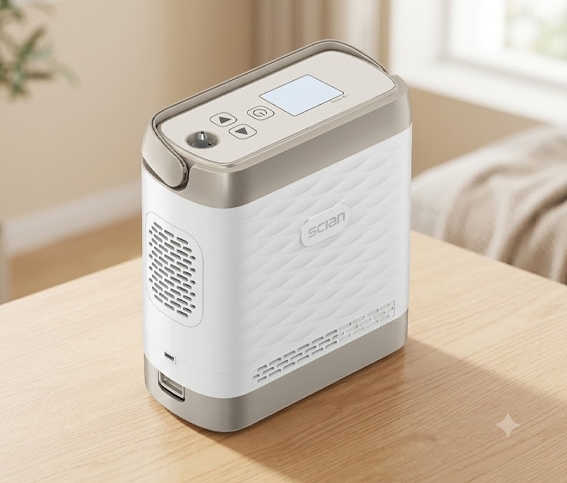

This handheld ultra-portable oxygen concentrator adopts French imported detachable molecular sieve and detachable long-life lithium battery, featuring one-key startup, wide adjustable flow range, up to 96% oxygen concentration, and a low-noise oil-free compressor for stable, powerful and durable oxygen supply.

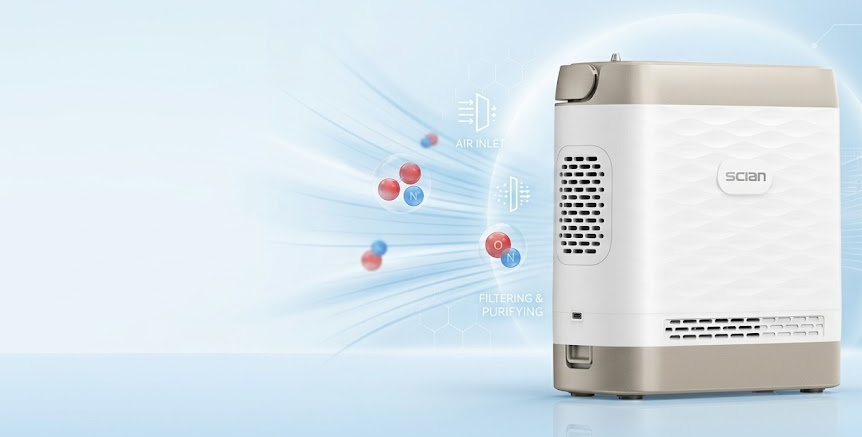

portable oxygen concentrator utilizes pulse induction technology and a pipe‑free air path structure. Air is compressed by an oil‑free compressor and then directed into a detachable molecular sieve (imported from France). The molecular sieve separates nitrogen from ambient air using pressure swing adsorption (PSA) principles, generating oxygen with a concentration of up to 96%. Oxygen is delivered during inhalation and stored in a gas box during exhalation, achieving pulsed oxygen delivery. The pipe‑free design makes the unit more compact, stable, and less prone to failure.

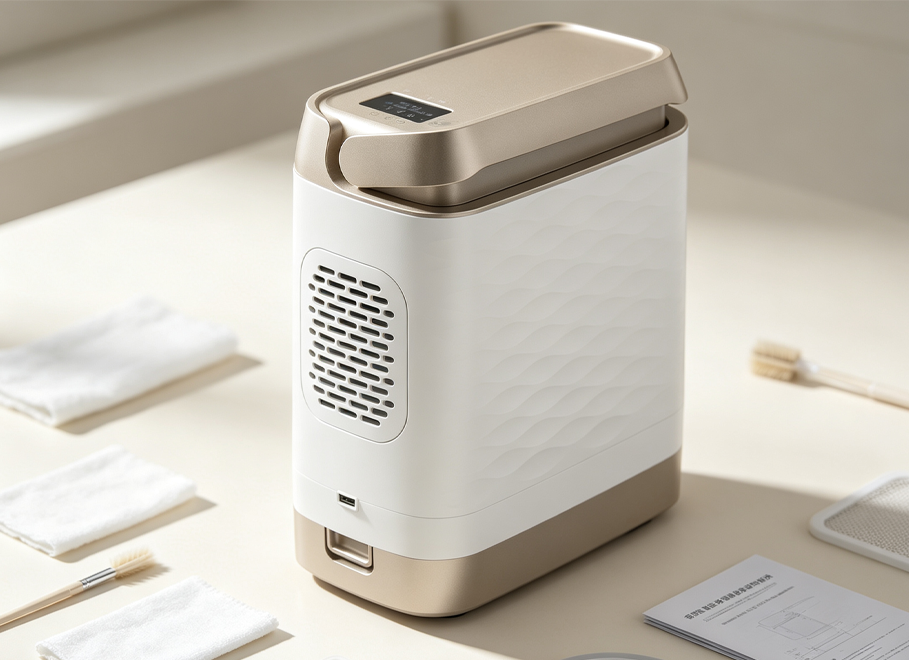

Wipe the unit weekly; avoid corrosive cleaners.
Clean the humidifier bottle daily and air-dry before use.
Replace the inlet filter every 6 months or when dirty.
Keep the molecular sieve air intake clean and dust-free.
Calibrate oxygen concentration and flow professionally every 1–2 years.
