The Ares-4A portable oxygen concentrator is built for mobile homecare oxygen support and outdoor use. It provides 1-4 pulse flow settings with a 0.2-0.8 L/min range and 93% +/-3% oxygen concentration, helping users choose a suitable output level for different daily scenarios. With approximately 1.5 kg net weight, rechargeable battery operation for about 60-160 minutes, and a sound level below 60 dB, this compact unit is practical for distributors seeking lightweight, travel-friendly oxygen concentrator models.
Technical Features
| Gear & Flow Rate | Oxygen Concentration | Dimensions (L×W×H) | Net Weight | AC Power | Battery Power Supply | Battery Life | Battery Charging Time | Sound Level | Equip Classification & Type |
| Pulse 1~4 gear (0.2L-0.8L/min) | 93%±3% | 193*83*173（mm） | Approx 1.5kg (including the battery) | 100-240V~50/60Hz 2.0A Max | DC 14.6V | 60-160min (power varies from settings 1-4) | about 2 hours | ≤60dB | Class II, type BF |
Equipped with French imported detachable molecular sieve and detachable lithium battery for extended runtime, this oxygen machine features one-key operation, adjustable flow, up to 96% oxygen concentration and a low-noise oil-free compressor for steady, powerful oxygen supply.

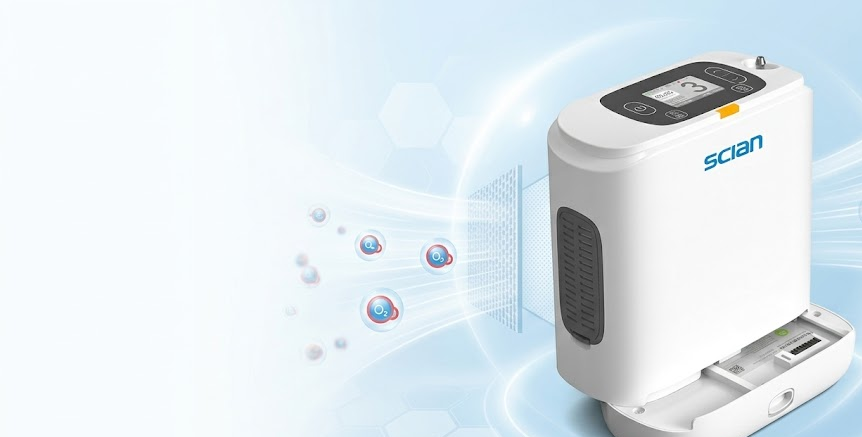

Portable oxygen concentrator utilizes pulse induction technology and a pipe‑free air path structure. Air is compressed by an oil‑free compressor and then directed into a detachable molecular sieve (imported from France). The molecular sieve separates nitrogen from ambient air using pressure swing adsorption (PSA) principles, generating oxygen with a concentration of up to 96%. Oxygen is delivered during inhalation and stored in a gas box during exhalation, achieving pulsed oxygen delivery. The pipe‑free design makes the unit more compact, stable, and less prone to failure.

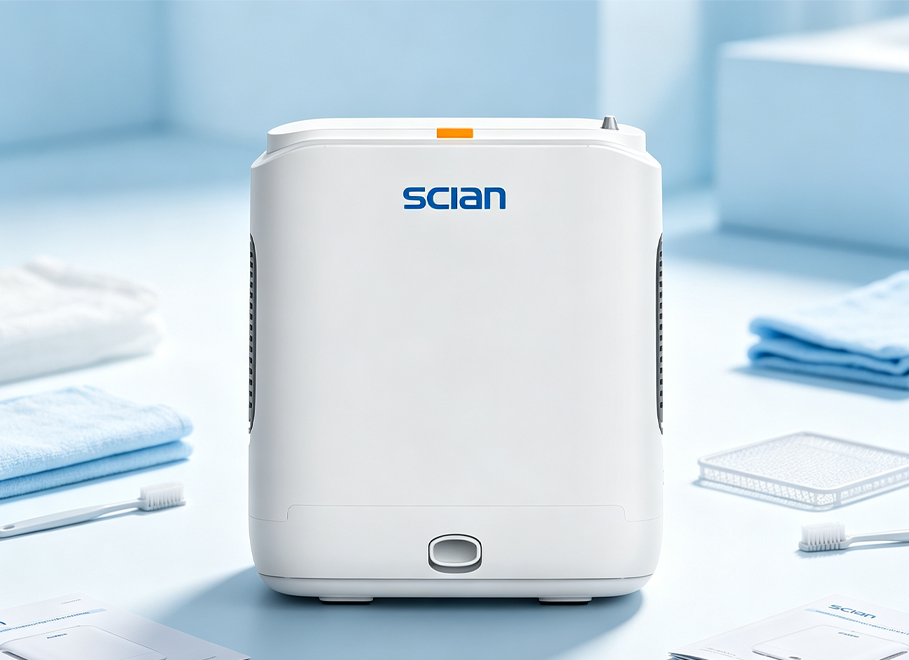

Wipe the unit weekly; avoid corrosive cleaners.
Clean the humidifier bottle daily and air-dry before use.
Replace the inlet filter every 6 months or when dirty.
Keep the molecular sieve air intake clean and dust-free.
Calibrate oxygen concentration and flow professionally every 1–2 years.
