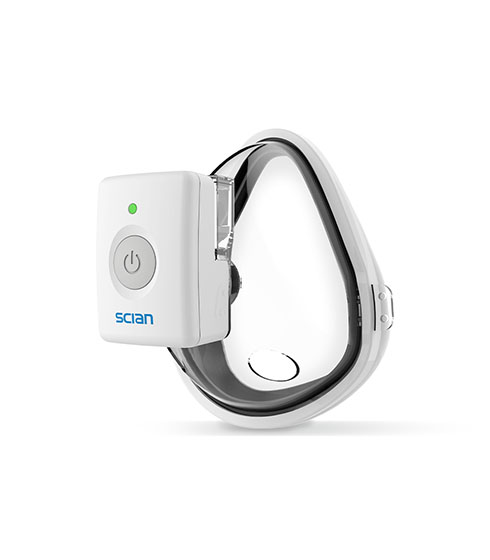

The NB-813B ultrasonic mesh nebulizer is a compact aerosol therapy device designed for quiet homecare use and portable respiratory care. It features approximate 3.5 um MMAD, around 80% FPF, a nebulizing rate of at least 0.2 ml/min, and a 180-hour nebulizing head life for stable atomization performance. With built-in lithium battery, USB Type-C convenience, automatic shutdown without liquid, and wearable device, battery level indicator and cleaning mode, the wearable and pocket-size design is suitable for family users, travel kits, and healthcare distributors.

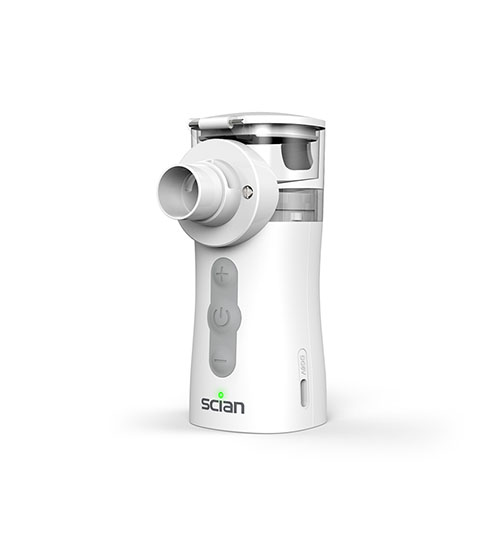

The NB-810B ultrasonic mesh nebulizer is a compact aerosol therapy device designed for quiet homecare use and portable respiratory care. It features approximate 3.5 um MMAD, around 80% FPF, a nebulizing rate of at least 0.2 ml/min, and a 180-hour nebulizing head life for stable atomization performance. With AA battery or 5V adapter power, USB Type-C convenience, automatic shutdown without liquid, and adjustable nebulizing rate and battery level indicator, the high-end portable design is suitable for family users, travel kits, and healthcare distributors.

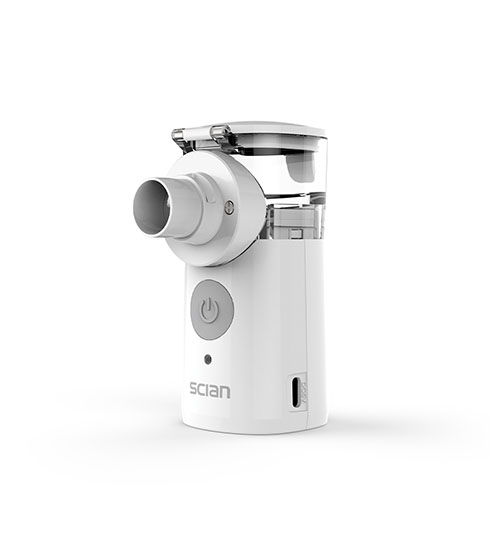

The NB-812B ultrasonic mesh nebulizer is a compact aerosol therapy device designed for quiet homecare use and portable respiratory care. It features approximate 3.5 um MMAD, around 80% FPF, a nebulizing rate of at least 0.2 ml/min, and a 180-hour nebulizing head life for stable atomization performance. With AA battery or 5V adapter power, USB Type-C convenience, automatic shutdown without liquid, and soundless operation and battery level indicator, the basic portable design is suitable for family users, travel kits, and healthcare distributors.

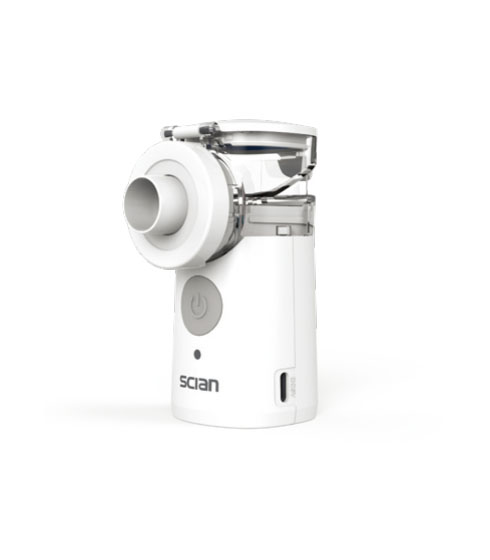

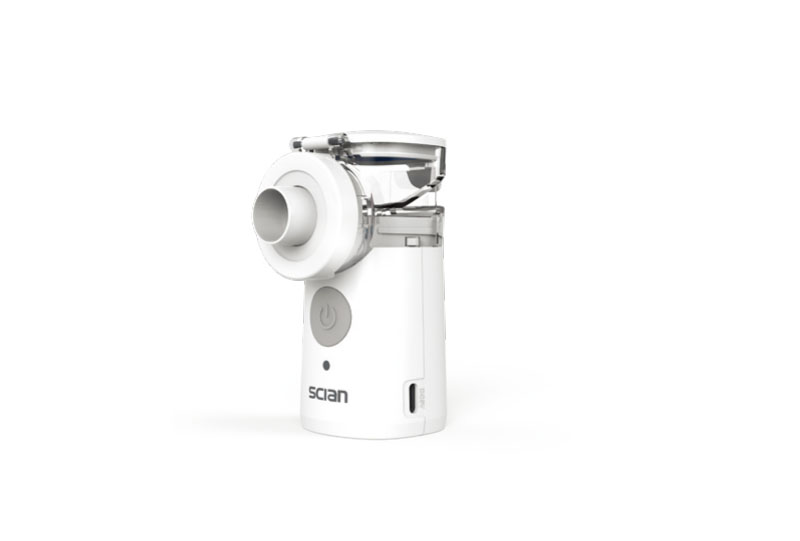

The NB-819B ultrasonic mesh nebulizer is a compact aerosol therapy device designed for quiet homecare use and portable respiratory care. It features approximate 3.5 um MMAD, around 80% FPF, a nebulizing rate of at least 0.2 ml/min, and a 180-hour nebulizing head life for stable atomization performance. With USB Type-C and lithium battery option, USB Type-C convenience, automatic shutdown without liquid, and removable mesh sheet, soundless operation and battery level indicator, the portable design is suitable for family users, travel kits, and healthcare distributors.

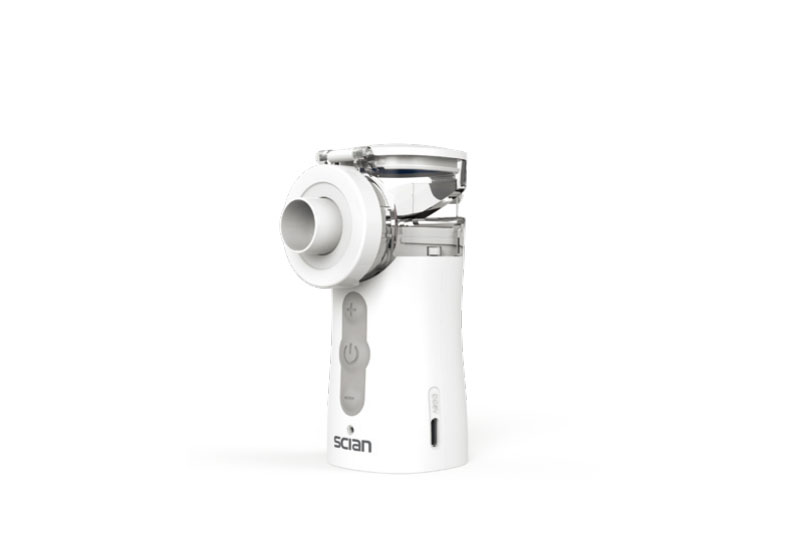

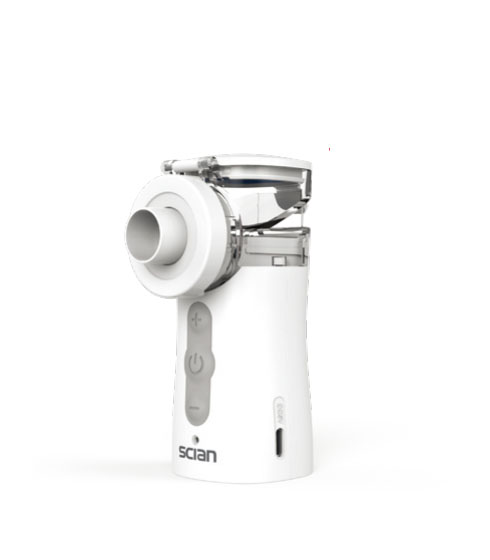

The NB-818B ultrasonic mesh nebulizer is a compact aerosol therapy device designed for quiet homecare use and portable respiratory care. It features approximate 3.5 um MMAD, around 80% FPF, a nebulizing rate of at least 0.2 ml/min, and a 180-hour nebulizing head life for stable atomization performance. With USB Type-C and lithium battery option, USB Type-C convenience, automatic shutdown without liquid, and removable mesh sheet and adjustable nebulizing rate, the portable design is suitable for family users, travel kits, and healthcare distributors.
Product Description

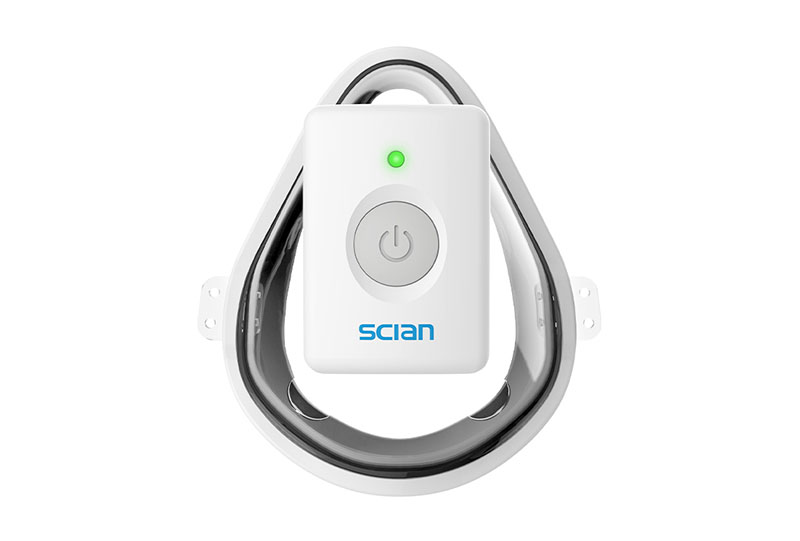

Wearable nebulizer NB-813B, powered by buit-in ithium battery, is a high-end mesh nebulizer, with reliable quality, soundless operation and cleaning mode for mesh maintenance.
Technical Features
| Ultrasonic Frequency | Power Supply | Rated Power | MMAD | FPF | Nebulizing Rate | Nebulizing Head Life | Battery life when fully charged | Max./Min. Liquid Volume | Cleaning mode | Weight | Device Size(mm) |
| Approx.110kHz | Built-in lithium battery (3.7V) | <3W | Approx.3.5μm | Approx.80% | ≥0.2 ml/min | 180 hours | >30 mins | 6ml/2ml Automatic shutdown without liquid | Yes | Approx.45g | 54*36*44 |
Built-in Battery Specification
| Type designation | Nominal voltage | Capacity | Expected service life of battery |
| Lithium battery | 3.7V | 300 mAh | 500 charge-discharge cycles |
AC-DC Adapter Specification
| Input | Output |
| 100~240V 50~60Hz | DC 5V, 0.5A |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
195*120*83 | 620*410*190 | 20 | 6/5 |
Accessories
Adult mask, child mask, inhalation mouthpiece, USB Type-C cable

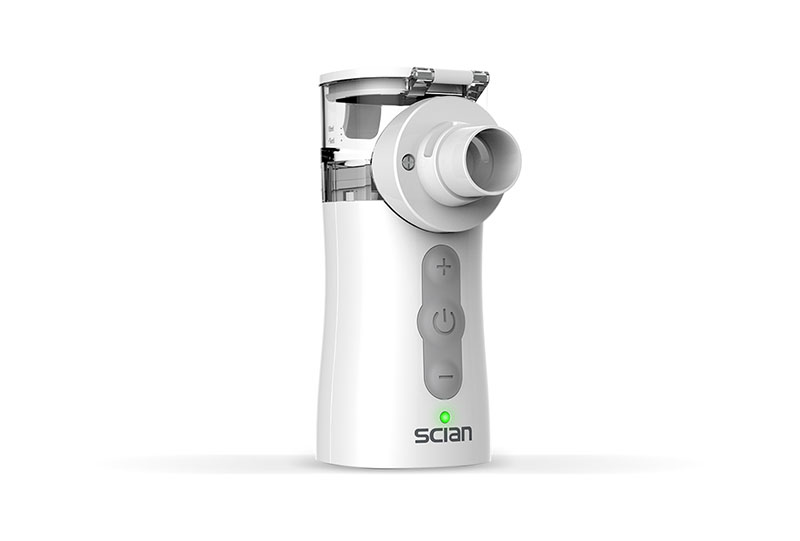

Product Description
NB-810B is a high-end mesh nebulizer with reliable quality, soundless operation, adjustable nebulizing rate function.It can be powered by AA battery or adapter and has battery level indicator.
Technical Features
| Ultrasonic Frequency | Power Supply | Rated Power | MMAD | FPF | Nebulizing Head Life | Max.Nebulizing Rate | Max./Min. Liquid Volume | Cleaning mode | Weight | Device Size(mm) |
| Approx.110kHz | 2×AA batteres or Adapter(5V,1A) | <3W | Approx.3.5μm | Approx.80% | 180 hours | ≥0.2 ml/min | 8 ml/0.5 ml Automatic shutdown without liquid | Yes | 90g | 75*45*108mm |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
150*110*130 | 570*470*280 | 30 | 10.7/9.7 |

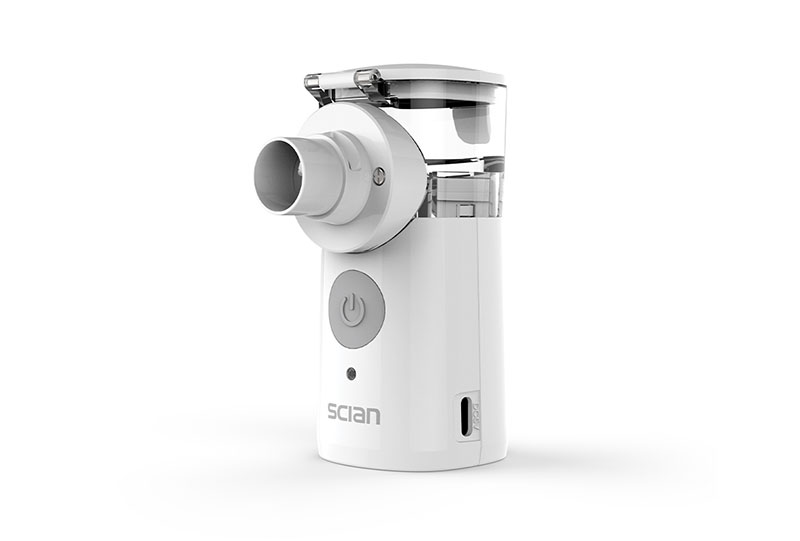

Product Description
Portable size nebulizer NB-812B, powered by AA battery or adapter, is a basic mesh nebulizer with reliable quality, soundless operation and enhanced cleaning mode for mesh maintenance.
Technical Features
| Ultrasonic Frequency | Power Supply | Rated Power | MMAD | FPF | Nebulizing Rate | Nebulizing Head Life | Battery Life | Max./Min. Liquid Volume | Cleaning mode | Weight | Device Size(mm) |
| Approx.110kHz | 2×AA batteres or Adapter(5V,1A) | <3W | Approx.3.5μm | Approx.80% | ≥0.2ml/min | 180 hours | 90 mins(2 AA Alkaline Batteries) | 8 ml/0.5 ml Automatic shutdown without liquid | Yes | 90g | 98*73*45 |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
150*110*130 | 570*470*280 | 30 | 10.7/9.7 |
Accessories
Adult mask, child mask, inhalation mouthpiece, bag, AA battery, USB Type-C cable
Technical Features
| MMAD | FPF | Nebulizing Rate | Nebulizing Head Life | Device size (mm) |
| Approx. 3.5 um | Approx. 80% | ≥0 . 2 ml/min | 180 hours | 98*73*45 |
Technical Features
| MMAD | FPF | Nebulizing Rate | Nebulizing Rate Adjustable | Device size (mm) |
| Approx. 3.5 um | Approx. 80% | ≥0 . 2 ml/min | yes | 108*75*45 |
This ultra-light compact nebulizer features mesh atomization delivering 3–5μm fine uniform particles for deep lung delivery, low noise, multi-power supply, one-button simple operation and low residual volume to boost drug utilization efficiency.
Using piezoelectric ceramic and micro-aperture mesh technology, the device instantly shears the medication into fine droplets as it passes through the micro-holes, creating a breathable aerosol. Droplet size is precisely controlled by hole diameter and vibration frequency for optimal lung deposition.
Maintenance：After use, remove the medication cup and rinse the mesh and the inner wall of the cup. Gently clean the mesh surface weekly with a soft brush.
Disinfection: Soak the mesh assembly in medical alcohol for 5 minutes once a month, then rinse and air dry.
Mesh Replacement: It is recommended to replace the micro-mesh every six months, or when a noticeable decrease in atomization output occurs.
Battery Care: For long-term storage, keep the battery charged to approximately 50% and recharge it once every 3 months.
