The LD-566 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features large LCD display, WHO/IHB functions and optional IMT, 1*90 memory, and Bluetooth/Wi-Fi, backlight and talking options to support clearer readings and easier operation. With DC or 4*AAA batteries, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.
The LD-598A upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features ultra-large LCD display and convenient reading angle, arterial stiffness index detection, WHO/IHB functions, 1*90 BP plus 1*AS memory, and movement error indicator and cuff check indicator to support clearer readings and easier operation. With Type-C or 4*AA batteries, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.
The LD-563 upper arm digital blood pressure monitor is designed for convenient home blood pressure monitoring and healthcare retail programs. It features screenless ultra-thin design, wireless transmission and IMT, app-based storage depending on system, and Bluetooth and integrated design to support clearer readings and easier operation. With Micro-USB built-in lithium battery, optional talking or wireless functions on selected configurations, and carton packaging data in the catalogue, this model is suitable for distributors building a scalable home health monitoring range.

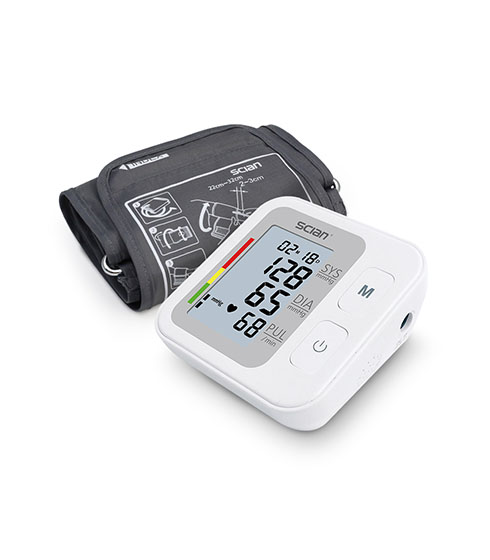

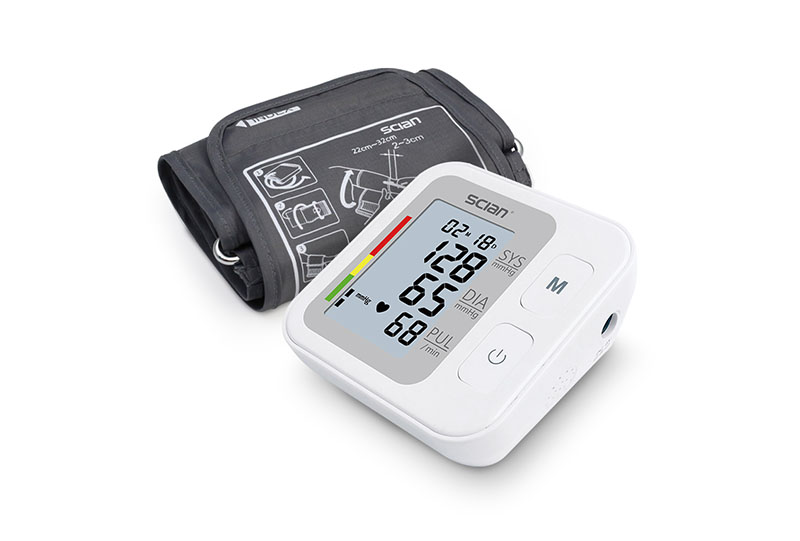

LD-566 Upper Arm Type
+ Large LCD display design
+ WHO(blood pressure classification indication)
+ Bluetooth/Wi-Fi(Optional)
+Backlight/Talking(Optional)
Inflation Measuring Technology(Optional)
| Memories | Dimension(mm) | Power |
| 1*90 | 106*106*48(LCD:42*67) | DC/4*AAA batteries |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
110*90*165 | 470*240*355 | 20 | 9/8 |

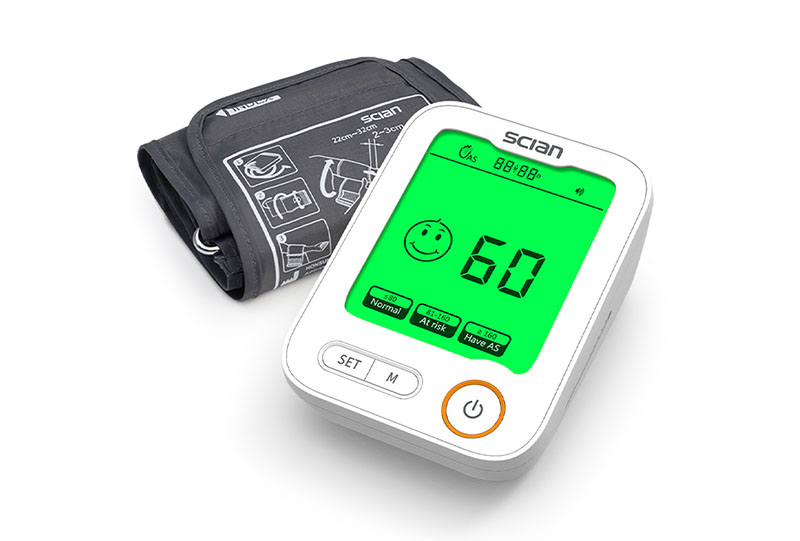

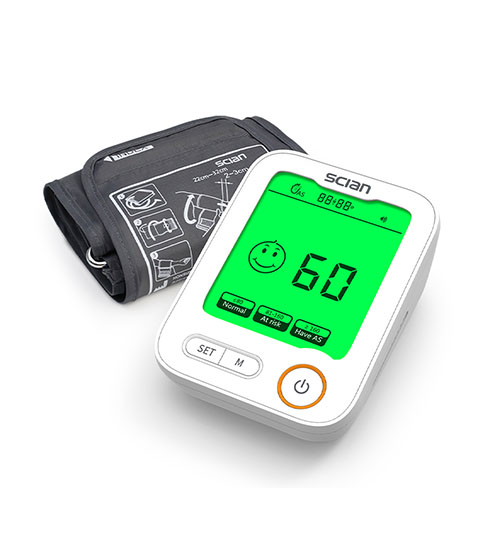

LD-598A Upper Arm Type
+ Arterial stiffness index detection
+ Ultra-large LCD display design
+ Convenient reading angle
+ Movement error indicator
+ Cuff check indicator
Inflation Measuring Technology
| Memories | Dimension(mm) | Power |
| 1*90BP+1*AS | 110*145*69(LCD:87*99) | Type-C/4*AA batteries |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
| 125*90*185 | 470*270*395 | 20 | 11/10 |

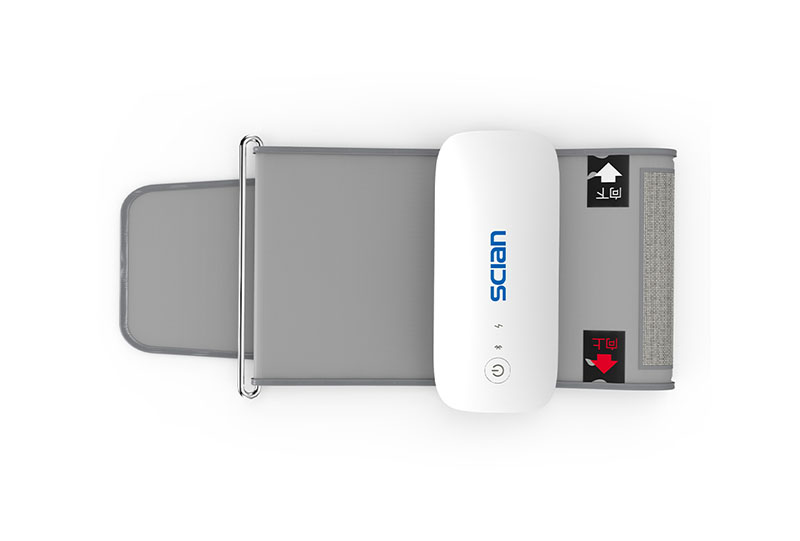

LD-563 Upper Arm Type
+ Screenless design
+ Wireless transmission
+Built-in lithium battery
Inflation Measuring Technology(IMT)
| Dimension(mm) | Power |
| 135*60*25 | Micro-USB/Built-in lithium battery |
Package Content
| Box size (mm) | Carton size(mm) | Pcs/Ctn | Kgs/Ctn |
192*112*66 | 400*350*250 | 20 | 9/8 |

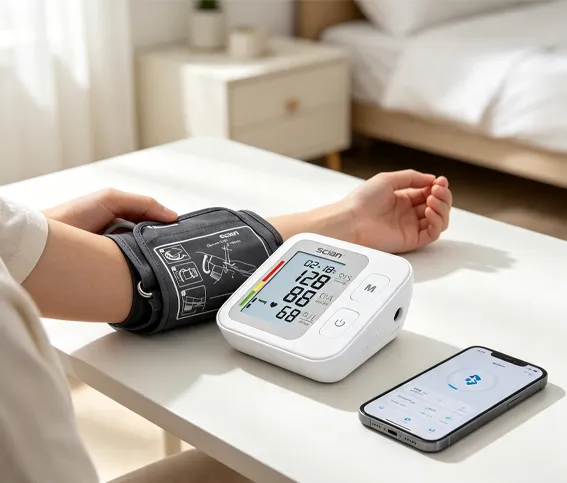

Featuring Bluetooth wireless transmission for auto‑syncing measurement results to mobile APP for easy data tracking and sharing, this device offers optional upper‑arm or wrist styles with intelligent automatic inflation pressure adjustment for comfortable, accurate readings, multi‑user record storage suitable for families and small clinics, arrhythmia detection to alert irregular heartbeat risks, a large backlight display, and USB‑battery dual‑power mode.

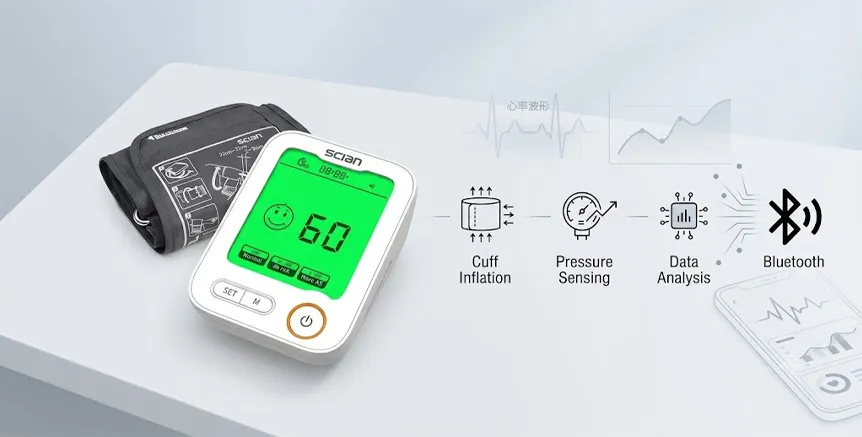

The cuff/wristband inflates to compress the artery, while a sensor detects oscillatory waves from the pulse; an oscillometric algorithm calculates blood pressure and heart rate, and the results are transmitted in real time to a smart device via Bluetooth.

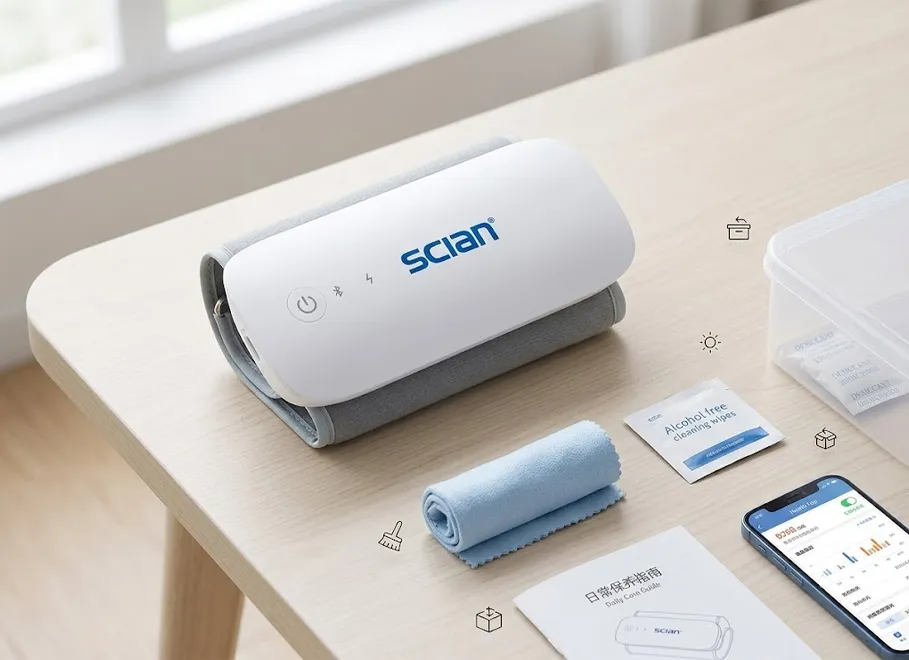

Cuff/wristband cleaning – Gently wipe with a soft cloth moistened with medical alcohol or mild detergent; air dry naturally. Do not machine wash or submerge.
Monitor cleaning – Wipe the monitor housing with a dry soft cloth; prevent liquid from entering ports, buttons, or the Bluetooth module area.
Bluetooth connection maintenance – If connection is unstable, try re‑pairing or resetting the APP; avoid connecting to multiple devices simultaneously to prevent interference.
Battery care – Remove batteries if not used for long periods to prevent leakage and corrosion. Avoid overcharging when using USB power.
